IoT Base Platform with RaspberryPi, WIZ850io : Echoback Application

​I know RaspberryPi platform for IoT. Recently WIZ850io is announced by WIZnet. So I implemented a RaspberryPi application by Ethernet SW modification because I can handle a source code easily. You can test the echoback application through RaspberryPi and WIZ850io. Please refer to the following step.

Step 1: Prepare Materials

Please refer to the following.

1. Raspberry Pi 3 Starter Kit

2. WIZ850io

3. UART2USB adapter

4. LAN cable

5. USB cable

Step 2: Hardware Connection

Please connect an USB, LAN cable, WIZ850io and UART2USB adapter.
You can get more HW info by the following site.

​https://pinout.xyz/pinout/spi

​http://wizwiki.net/wiki/doku.php?id=products:wiz850io:start

Step 3: Prepare Development Environment

Raspberry Pi 3

https://www.raspberrypi.org/downloads/raspbian/

WiringPi Library

http://wiringpi.com/download-and-install/

Step 4: Software

WIZ850io ​ioLibrary

https://github.com/Wiznet/ioLibrary_Driver

Step 5: How to Run : Modification

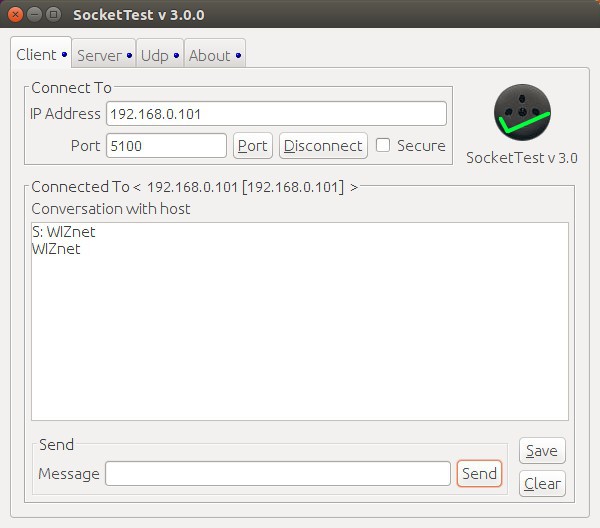

Step 6: How to Run : Result


신고

IoT Base Platform with GCC, WIZwiki-W7500

I know WIZwiki-W7500 platform for IoT. Recently WIZwiki-W7500 board is announced by WIZnet. So I implemented a firmware of WIZwiki-W7500 board by Ethernet SW modification because I can handle a source code easily. You can know the status of equipment even if it is so far. Please refer to the following step.

Step 1: Prepare Materials

Please refer to the following.

1. WIZwiki-W7500 board

2. Easy Module shield

3. UART2USB adapter

4. LAN cable

5. USB cable

Step 2: Hardware Connection

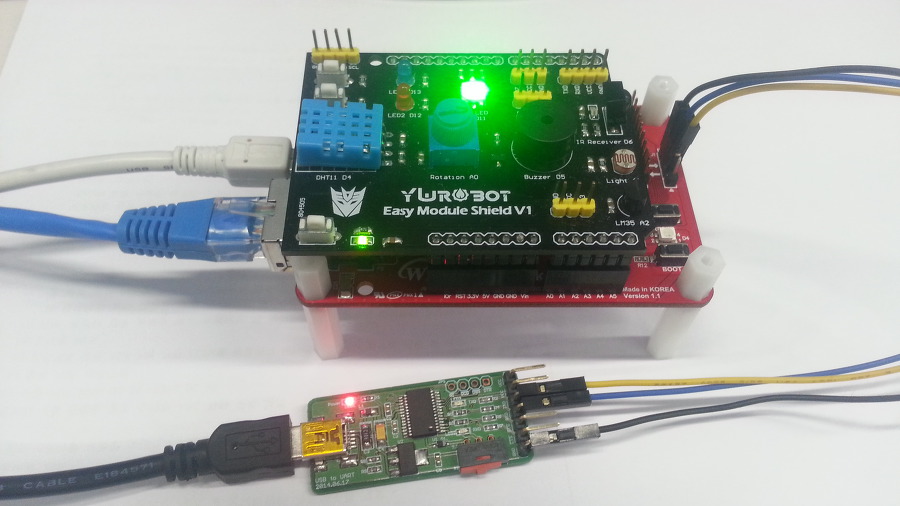

Please connect an USB, LAN cable, Easy shield and UART2USB adapter.

You can get more HW info by the following site.

http://wizwiki.net/wiki/doku.php?id=products:wizwiki_w7500:start

Step 3: Prepare Development Environment

Currently I use gcc-arm-none-eabi-6-2017-q1-update version.

Refer to http://opensrclab.tistory.com/33 for GCC install.

Step 4: Software

NTP Example

W7500_NTP.7z

DHT11 Temperature Example

To be continued.

신고

To use WIZ550io in Arduino platform : Arduino UNO

I know Arduino platform for IoT. So I implemented a firmware of Arduino by Ethernet SW modification because I can handle a source code easily. You can know the status of equipment even if it is so far. Please refer to the following step.

Reference : https://forum.wiznet.io/t/Wiz550io-Arduino-due-Mysqlconnector-arduino-ide/3348

Step 1: Prepare Materials

Please refer to the following.

1. Arduino UNO

2. WIZ550io or ioShield-A

3. LAN cable

4. USB cable

Step 2: Hardware Connection

Please connect an LAN cable and USB cable

You can get more HW info by the following site.

https://www.arduino.cc/en/Main/ArduinoBoardUno

http://wizwiki.net/wiki/doku.php?id=products:wiz550io:start

First of all, prepare Arduino UNO and WIZ550io module.

Connect Arduino UNO and WIZ550io module like below.

Arduino UNO pin<->WIZ55io pin

3.3V<->3V3D

GND<->GND

13<->SCLK

12<->MISO

11<->MOSI

10<->SCSn

RESET<->RSTn

I recommand to use ioShield-A.

Step 3: Prepare Development Environment

https://www.arduino.cc/en/Guide/HomePage

Step 4: Software

I uploaded Arduino project. You can download this project file. And then import project into Arduino IDE.

After compile, you can execute a sample of WebServer.

WebServer.zip

Step 5: How to Run : Modification

Execute Arduino IDE.
Select Arduino IDE Menubar->Sketch->Include Library->Mange Libraries...
Search Ethernet2 library by string.
Install Ethernet2 library.

Find w5500.h, w5500.cpp
Windows OS
C:\Users\your username\Documents\Adruino\libraries\Ethernet2\utility\
Linux
/home/your username/Arduino/libraries/Ethernet2/src/utility/

Insert the following code in w5500.h

...
#define WIZ550ioWITH_MACADDRESS
...

Insert the following code in w5500.cpp

...
#if !defined(WIZ550ioWITH_MACADDRESS)
w5500.swReset();
#endif
...

For example, you can modify Ethernet.begin function of WebServer code without mac parameter.
Compile and upload by Arduino IDE.

Step 6: How to Run : Result
